[CVVD System Operation Mode]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

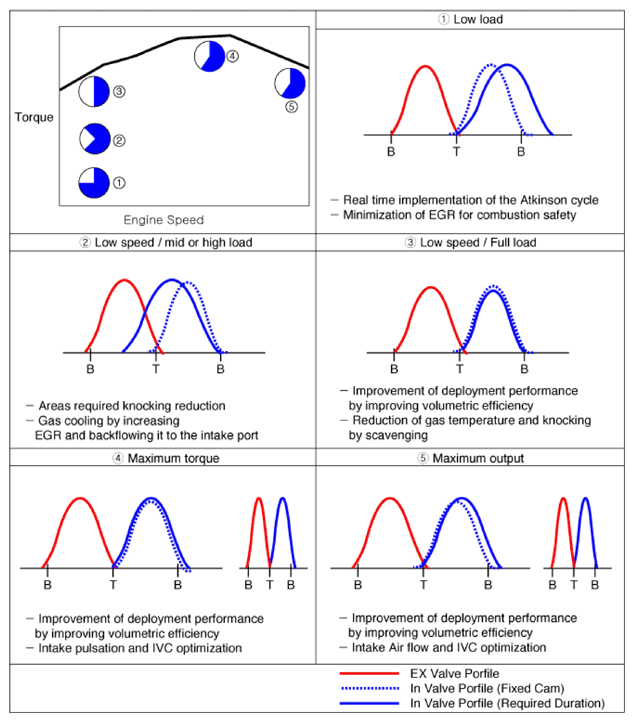

Optimum valve timing according to the engine load conditions

G14956867Courtesy of KIA MOTORS AMERICA, INC.
