Handling Wires And Harnesses

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure wires and wire harnesses to the frame with their respective wire ties at the designated locations.

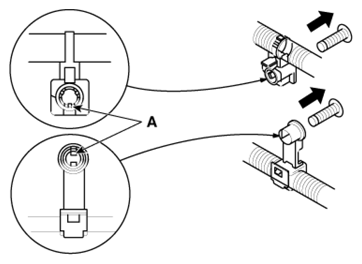

  2. Remove clips carefully; don't damage their locks (A).
    G14942356Courtesy of KIA MOTORS AMERICA, INC.

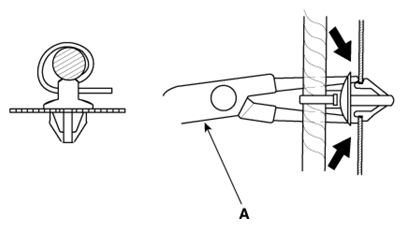

  3. Slip pliers (A) under the clip base and through the hole at an angle, and then squeeze the expansion tabs to release the clip.
    G14942357Courtesy of KIA MOTORS AMERICA, INC.
  4. After installing harness clips, make sure the harness doesn't interfere with any moving parts.
  5. Keep wire harnesses away from exhaust pipes and other hot parts, from sharp edges of brackets and holes, and from exposed screws and bolts.

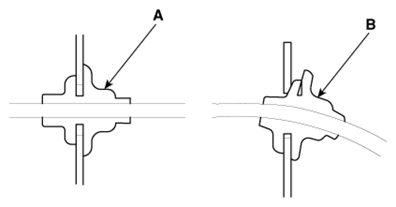

  6. Seat grommets in their grooves properly (A). Do not leave grommets distorted (B).
    G14942358Courtesy of KIA MOTORS AMERICA, INC.
