Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator, spring pad, coil spring and dust cover from the strut assembly.
    CAUTION:

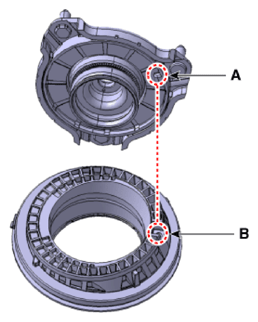

    • When install the insulator and strut bearing align the insulator lug (A) with the strut bearing hole (B).
      G14957933Courtesy of KIA MOTORS AMERICA, INC.

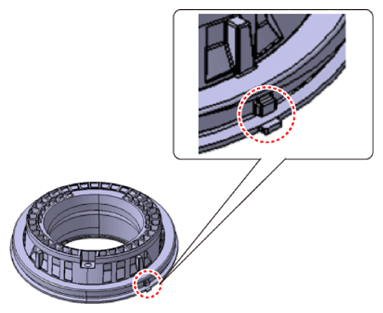

    • Align the strut upper housing with the lower housing lug and then install it.
    G14957934Courtesy of KIA MOTORS AMERICA, INC.

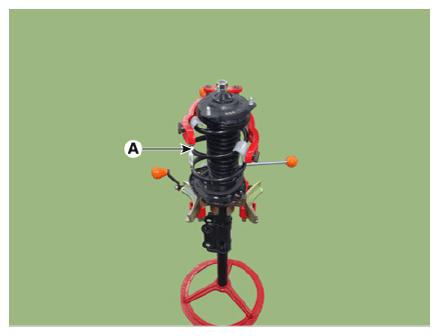

  2. Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
    G14957935Courtesy of KIA MOTORS AMERICA, INC.

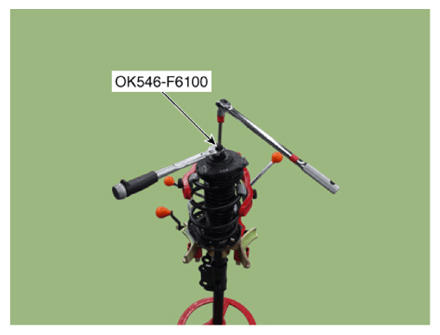

  3. Using the SST (0K546-F6100), install the self locking nut.
    NOTE: Do not reuse the self locking nut.

    Tightening torque:

    107.8 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb.ft)

    G14957936Courtesy of KIA MOTORS AMERICA, INC.

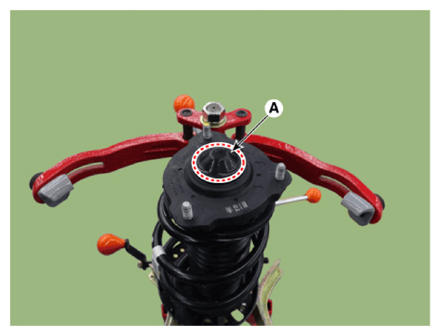

  4. Install the insulator cap (A).
G14957937Courtesy of KIA MOTORS AMERICA, INC.
