Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the front wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")

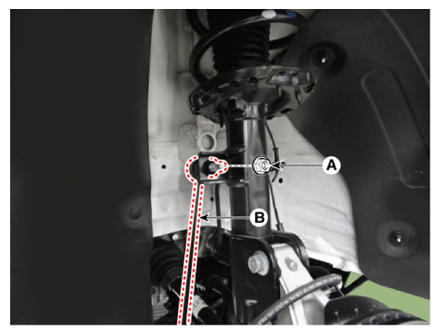

Disconnect the stabilizer bar link (B) from the front strut assembly after removing the nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When removing the nut (A), fix the outer hexagon of stabilizer bar link (B).
- Be careful not to damage the stabilizer bar link boots.

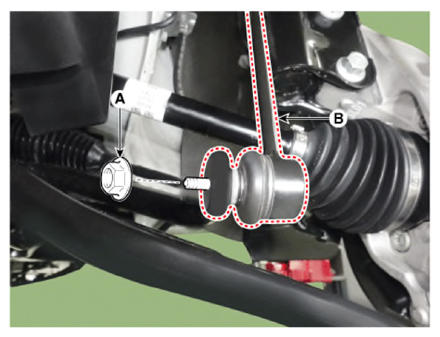

Remove the nut (A) and disconnect the stabilizer bar link (B) from the stabilizer bar.

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

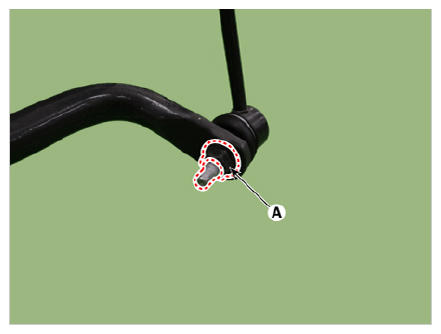

NOTE:

When removing the nut (A), fix the outer hexagon of stabilizer bar link.

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to damage the stabilizer bar link boots.

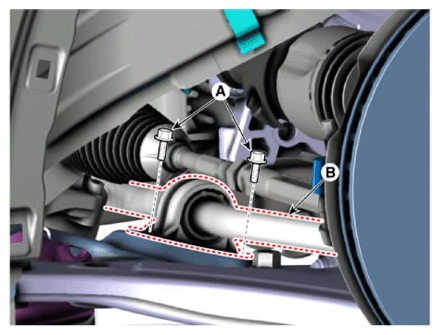

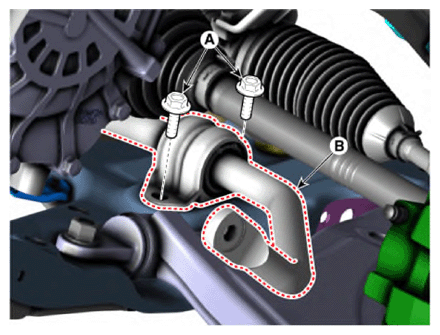

Remove the bracket bolts (A) and remove the stabilizer bar (B) from the sub frame.
Tightening torque:

63.7 - 78.4 N.m (6.5 - 8.0 kgf.m, 47.0 - 57.8 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
