Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

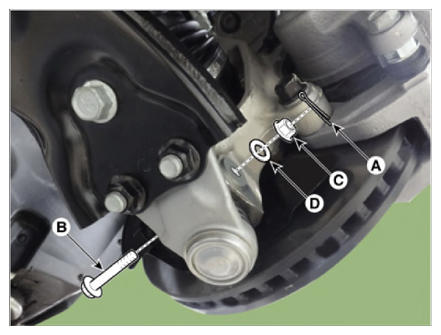

Remove the lower arm mounting nut (A).

Remove the split pin (A).

Remove the lower arm mounting bolt (B), nut (C) and washer (D).

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G14957938

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: To remove the nut (C), fix the bolt (B) on the opposite side to prevent it from turning.

Disconnect lower arm ball joint from the knuckle by using the SST (0K545-A9100).

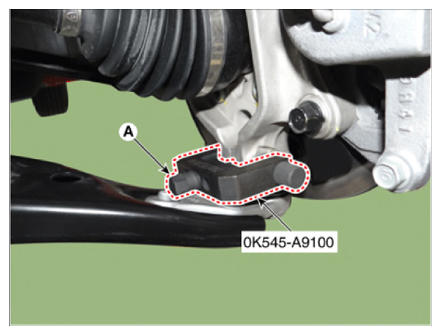

After removing bolts from the front knuckle, install and tighten the sub body bolt (A).

G14957939

Courtesy of KIA MOTORS AMERICA, INC.

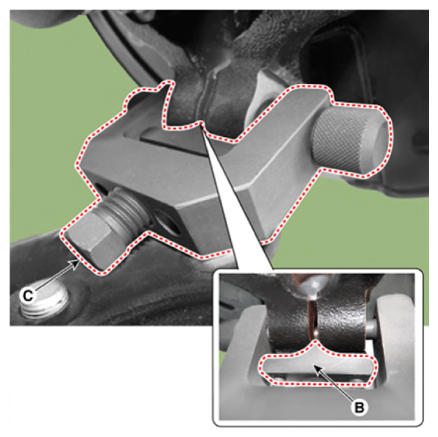

Input the sub body (B) between the front knuckle and the sub body bolt.

Tighten the bolt (C) of the sub body to broaden the gap of the front knuckle.

G14957940

Courtesy of KIA MOTORS AMERICA, INC.

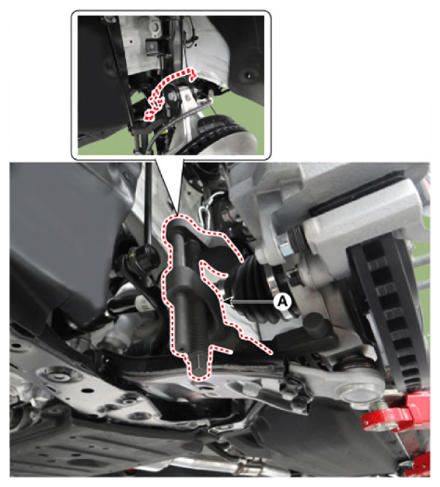

Install the safety wire and main body (A) between the front strut and the lower arm.

G14957941

Courtesy of KIA MOTORS AMERICA, INC.

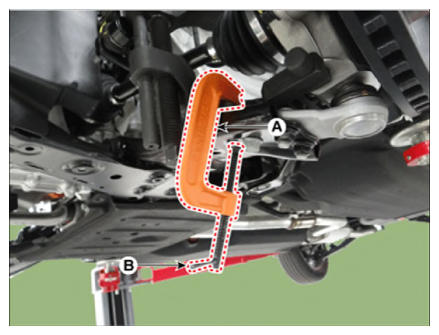

After installing main body (A), rotate the handle (B) clockwise until the clamp is fixed on the lower arm.

G14957942

Courtesy of KIA MOTORS AMERICA, INC.

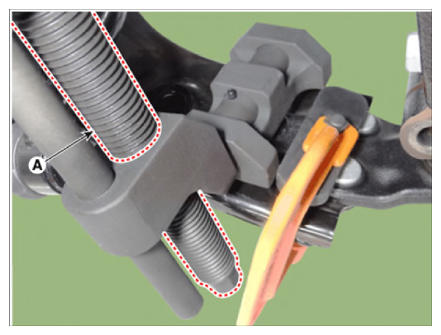

Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.

G14957943

Courtesy of KIA MOTORS AMERICA, INC.

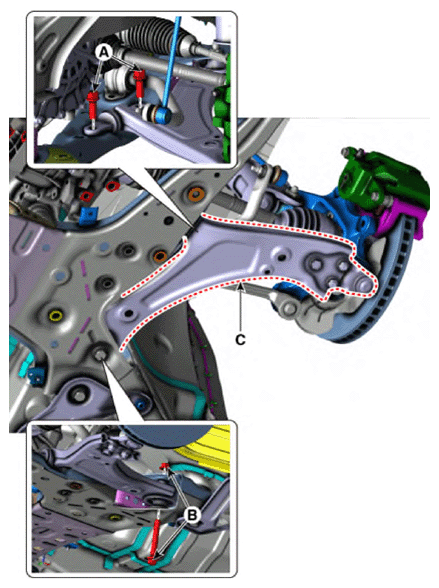

Remove the bolts (A), (B) and remove the lower arm (C) from the sub frame.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
