Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the transmission in neutral or N.
  2. Jack up the vehicle, and make sure it is securely supported.

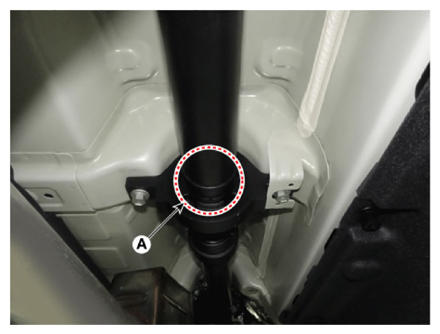

  3. Check the CV joint boot (A). If the CV joint boot is damaged, replace the propeller shaft assembly.
    G14957789Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the excessive movement of CV joint.

    If has that, should be replaced the propeller shaft.
