Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

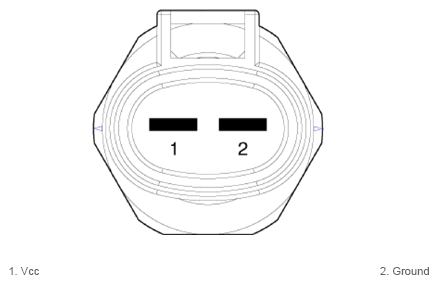

Use a multi tester to measure the resistance of the terminals 1 and 2.

Temperature [°C]	Resistance [KΩ]	Margin of Error
-40	225.1	3.06
-30	129.3	2.49
-20	76.96	1.95
-10	47.34	1.46
0	30	1
10	19.53	1.43
20	13.03	1.82
30	8.896	2.19
40	6.201	2.54
50	4.406	2.86
60	3.186	3.16
70	2.343	3.44
80	1.749	3.71
90	1.325	3.96
100	1.017	4.2
110	0.789	4.42
120	0.62	4.63
130	0.493	4.84
