Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
NOTE: Be careful not to damage or scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

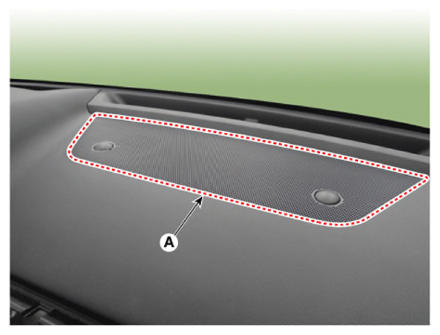

  2. Remove the crash pad center speaker grille (A) by using the screw driver or remover.
    G14958888Courtesy of KIA MOTORS AMERICA, INC.

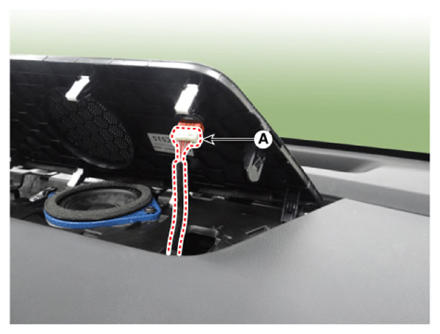

  3. Disconnected the photo sensor And auto light sensor connector (A).
    G14958889Courtesy of KIA MOTORS AMERICA, INC.

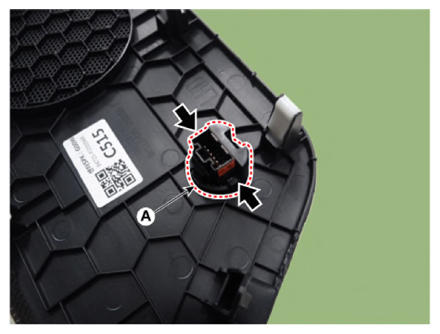

  4. Remove the photo sensor And auto light sensor (A) by pressing the locking pins.
    G14958890Courtesy of KIA MOTORS AMERICA, INC.

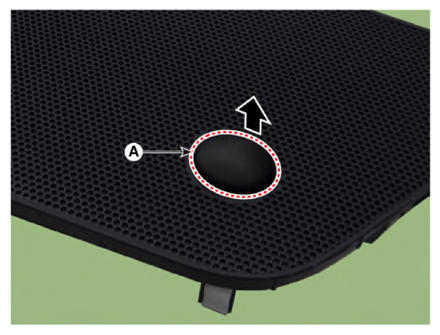

    G14958891Courtesy of KIA MOTORS AMERICA, INC.
