[Electric A/C Compressor Inverter Inspection]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

To check the compressor inverter, measure the resistance value of the compressor's high voltage pin, low voltage pin and insulation.

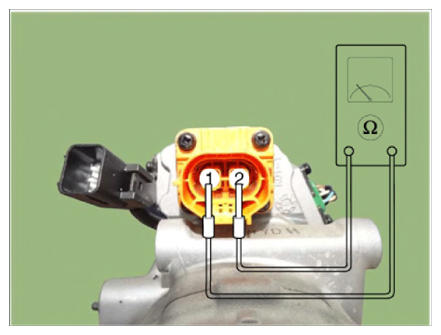

High voltage pin

Normal resistance value: 100 Ω;↑

Abnormal resistance: 100 Ω;↑

Courtesy of KIA MOTORS AMERICA, INC.

Low voltage pin
1. Measure CAN HIGH/LOW Resistance
  - Measure terminals 2 and 5.
    Normal: 120 Ω;

    Abnormal: inverter short-circuited (= 0 Ω;)
2. Measure CAN Ground Resistance
  - Measure terminals 1 and 2/1 and 5.
    Normal: 13~14 KΩ;/200~600 KΩ; (High Performance DSP Specifications)

    Abnormal: inverter short-circuited (=0Ω;)

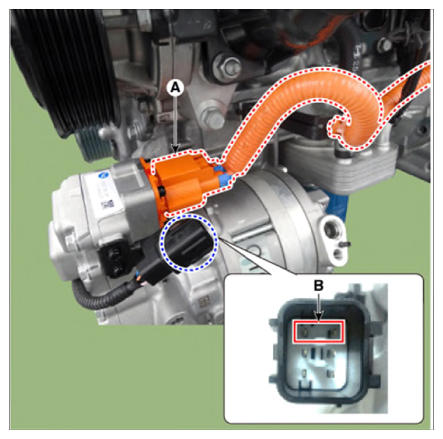

3. Measure Interlock HIGH/LOW Resistance measure (Connect high voltage connector (A) and measure low voltage (B) 3 and 6 resistance.)
  Normal: Below 1.0 Ω;

  Abnormal: MΩ;

Courtesy of KIA MOTORS AMERICA, INC.

Information

Courtesy of KIA MOTORS AMERICA, INC.

Pin No.	Function	Pin No.	Function
1	GND 12V	4	IG 12V
2	CAN LOW	5	CAN HIGH
3	Interlock (-)	6	Interlock (+)

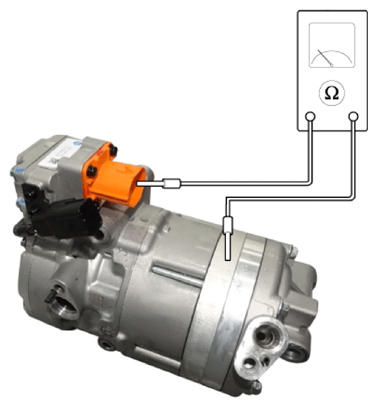

Compressor insulation resistance measurement.
Normal resistance value: check insulation resistance (Minimum: 100 MΩ;) (@500 VDC, no coolant)

Courtesy of KIA MOTORS AMERICA, INC.
