[Electric A/C Compressor Internal Body Inspection]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Electric compressor body inside check procedure.

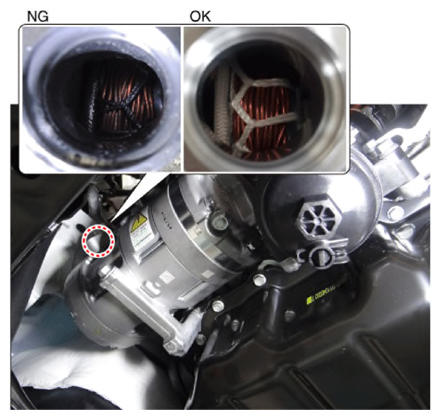

    1. Remove the low-pressure pipe from the electric compressor.
    2. Check if the copper wire and white thread inside of the compressor was contaminated.
    G14958850Courtesy of KIA MOTORS AMERICA, INC.

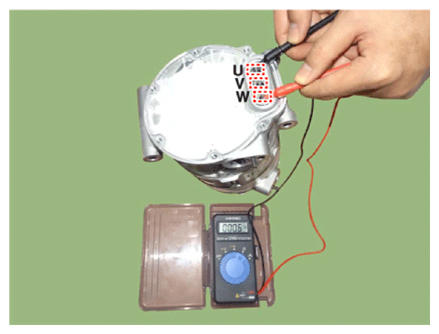

  2. To check the compressor motor, measure the resistance of the 3-phase power pin.
    1. If the 3-phase resistance value is out of specification, it means motor malfunction. Replace the whole compressor assembly.
    G14958851Courtesy of KIA MOTORS AMERICA, INC.
