Repair Procedures: Removal: [Passenger]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the crash pad center panel.
(Refer to Body - "CRASH PAD CENTER PANEL ")

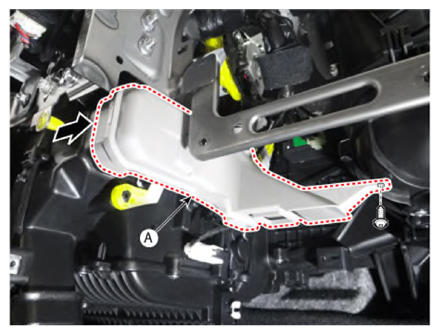

Remove the passenger shower duct (A) by removing the mounting screw.

Courtesy of KIA MOTORS AMERICA, INC.

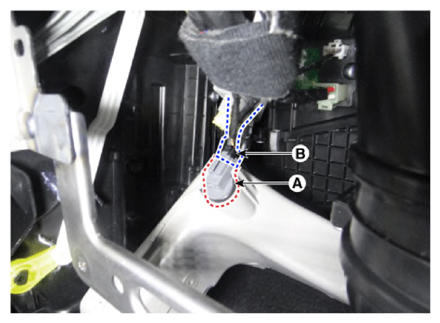

Remove the duct sensor.
1. Disconnect the duct sensor connector (B).
2. Remove the duct sensor (A) by turning 90 degrees to the clockwise.
Courtesy of KIA MOTORS AMERICA, INC.
