Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

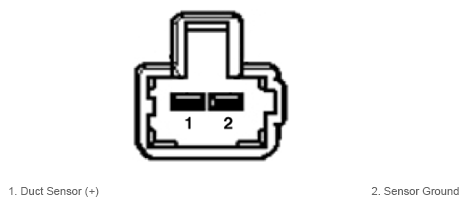

- Check that the voltage values of No. 1, 2 duct sensors change
 Courtesy of KIA MOTORS AMERICA, INC.
|
SENSOR RESISTANCE (FLOOR - LH/RH) AND VOLTAGE SPECIFICATION
| Ambient temperature [°C (°F)] |
Resistance (kΩ) |
Voltage (V) |
| 50 (122) |
1.08 |
0.87 |
| 30 (86) |
2.42 |
1.61 |
| 10 (50) |
5.96 |
2.69 |
| 0 (32) |
9.73 |
3.28 |
| -20 (-4) |
28.01 |
4.23 |
| -40 (-40) |
87.72 |
4.73 |
