Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

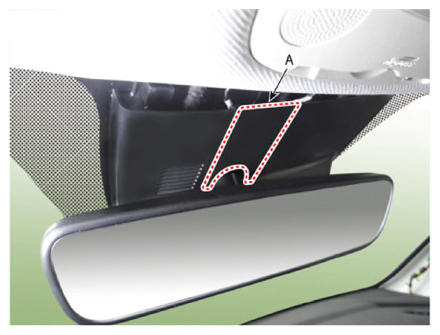

  2. Remove the inside rear view mirror cover (A).
    G14958894Courtesy of KIA MOTORS AMERICA, INC.

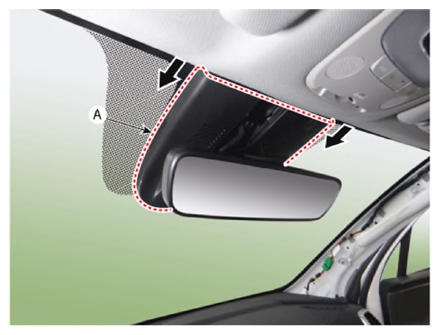

  3. Remove the multi-sensor cover (A), being careful not to damage the cover.
    G14958895Courtesy of KIA MOTORS AMERICA, INC.

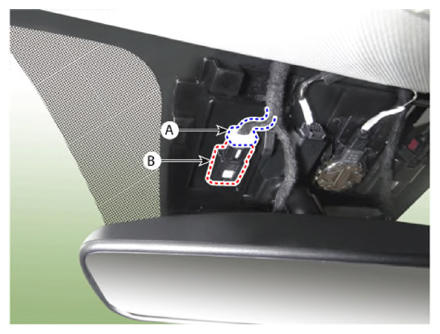

  4. Remove the auto defogging sensor (B) by disconnecting the auto defogging sensor connector (A).
    G14958896Courtesy of KIA MOTORS AMERICA, INC.
