Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

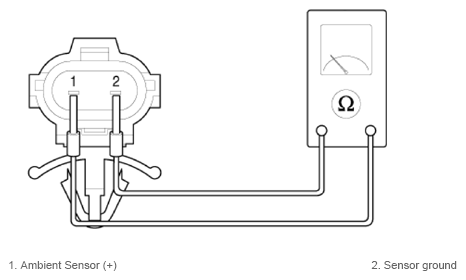

- Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.
RESISTANCE SPECIFICATION
| Ambient temperature [°C (°F)] | Resistance between terminal 1 and 2 (kΩ) |
|---|---|
| -30 (-22) | 480.41 |
| -20 (-4) | 271.21 |
| -10 (14) | 158.18 |
| 0 (32) | 95.10 |
| 10 (50) | 58.50 |
| 20 (68) | 37.32 |
| 30 (86) | 24.26 |
| 40 (104) | 16.13 |
| 50 (122) | 10.95 |
