Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

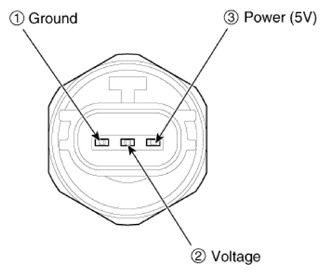

  1. Measure the pressure of high pressure line by measuring voltage output between terminal "1" and "2".
    G14958878Courtesy of KIA MOTORS AMERICA, INC.
  2. Inspect the voltage value whether it is sufficient to be regular value or not.

    Voltage = 0.00878835 * Pressure + 0.37081095

  3. If the measured voltage value is not with in specification, replace the A/C pressure transducer.
