Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain engine coolant by removing the drain plug.
(Refer to Cooling System - "COOLANT ")
Install the jack under the edge of lower oil pan to support the engine.
Remove the engine mounting bracket
(Refer to Engine and Transaxle Assembly - "ENGINE MOUNTING ")
Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")

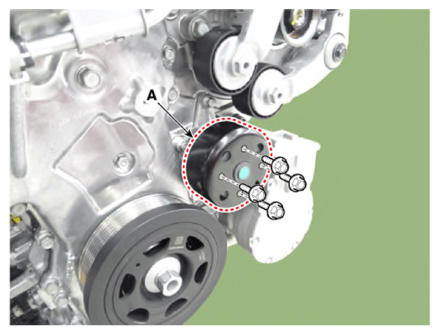

Remove the water pump pulley (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

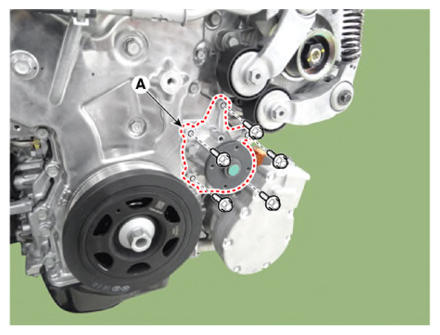

Remove the water pump (A).
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 7.8 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

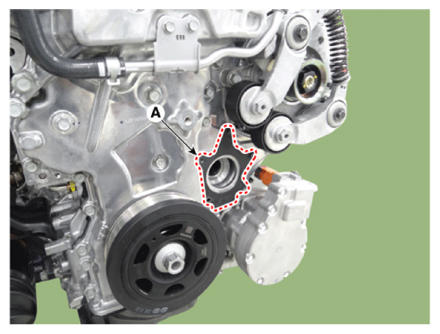

Remove the water pump gasket (A)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Always use a new water pump gasket.
- Check the specifications of the bolt for installing the water pump. (Make sure that the bolt has a solid sealant applied to it.)
- Always use a new water pump bolt.
- Remove the residue of the sealant inside the bolt tab hole.
- When installing the water pump, tighten the bolts in the order shown below.

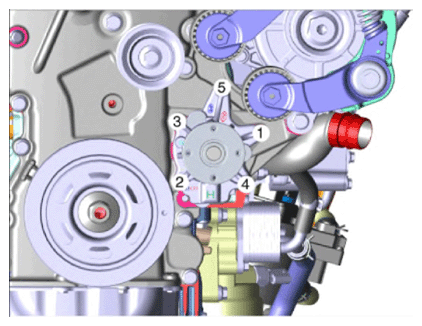

  Fig 1: Water Pump Bolts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.

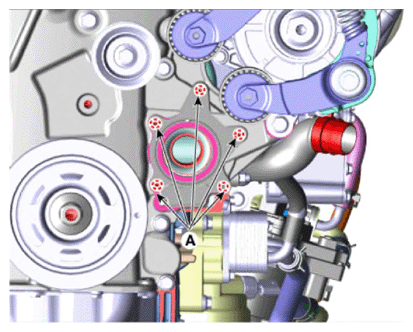

- Before installing the water pump, clean the hardened sealant, foreign matter, oil, dust, moisture, etc. inside the hole (A) where the bolt is mounted.
Courtesy of KIA MOTORS AMERICA, INC.
Fill with coolant.
(Refer to Cooling System - "COOLANT ")

NOTE: The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
Start engine and check for leaks.
Recheck engine coolant level.
