Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly System - "ENGINE ROOM UNDER COVER ")

  2. Drain engine coolant by removing the drain plug.

    (Refer to Cooling System - "COOLANT ")

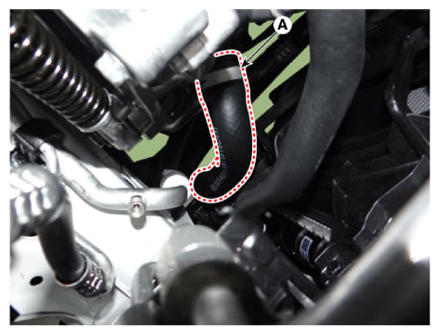

  3. Disconnect the radiator lower hose (A).
    G14936867Courtesy of KIA MOTORS AMERICA, INC.

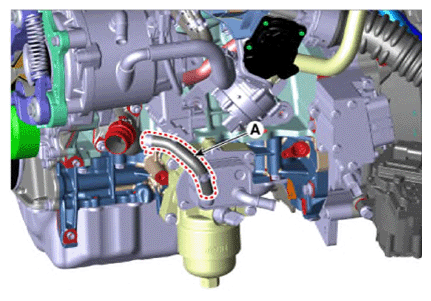

  4. Disconnect the oil cooler hose (A).
    G14936868Courtesy of KIA MOTORS AMERICA, INC.

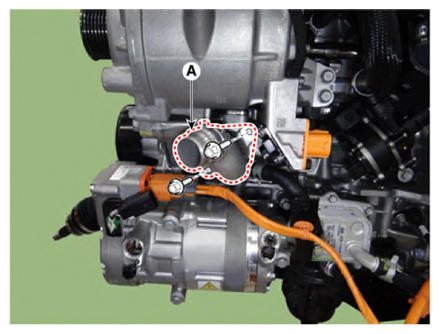

  5. Remove the water inlet fitting (A).

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

    G14936869Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
    NOTE: Assemble the hose so that the hose end pole is attached to the stopper in the prescribed position, and keep the clamp in position.
  7. Fill with coolant.

    (Refer to Cooling System - "COOLANT ")

    NOTE: The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
  8. Start engine and check for leaks.
  9. Recheck engine coolant level.
