Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine room under cover.
(Refer to Engine and Transaxle - " ENGINE ROOM UNDER COVER " )
Remove the coolant drain plug and drain the coolant.
(Refer to Cooling System - "COOLANT ")

Remove the reservoir tank.

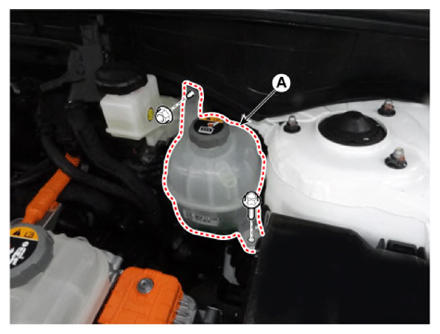

Disconnect the reservoir return hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

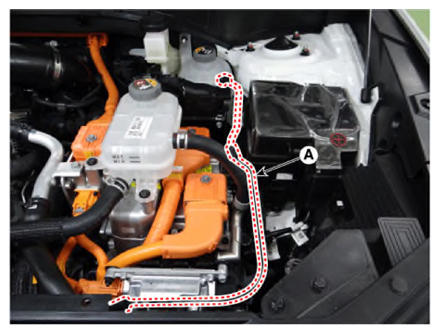

Disconnect the degaussing hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

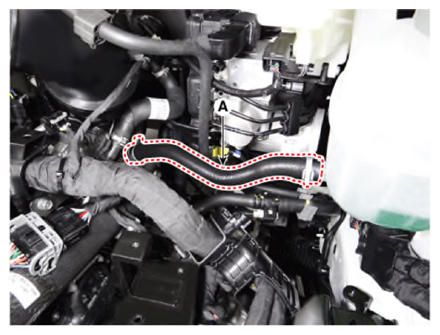

Remove the reservoir tank (C).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
Fill with coolant.
(Refer to Cooling System - "COOLANT ")

NOTE: Refill the coolant according to the Integrated Flow Control Valve (ITM) coolant filling method.
