Section 81 (Engine Cooling System (PHEV))
>>
Integrated Thermal Management Module (ITM)
>>
Components And Components Location
>>
Integrated Thermal Management System (ITMS)
>>
Components
Integrated Thermal Management System (ITMS): Components
WARNING:
This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

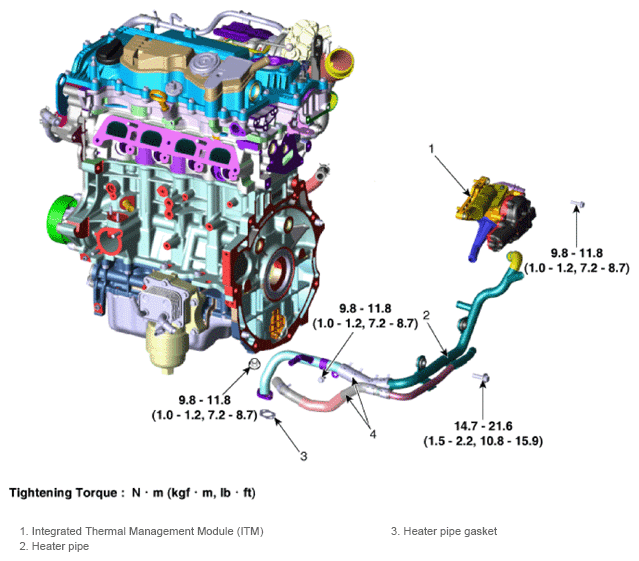

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
