Removal And Installation
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the radiator
(Refer to Cooling System - "RADIATOR ")

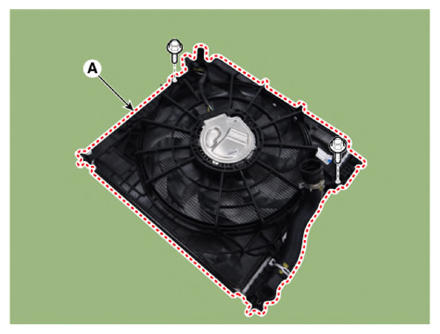

- The cooling fan assembly (A) is removed from the radiator.
Tightening torque:
4.9 - 7.9 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)
- Install in the reverse order of removal.
