Fan Motor

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF" and connect the KDS to the data link connector.
With the gear shift in P (Park) position and ignition switch "ON" (LED of the power button illuminates in red), select the "Actuation Test" function.
Actuate the cooling fan motor.

Information

There are two functions for the fan motor actuation Low speed and High speed.

[Fan motor low speed]

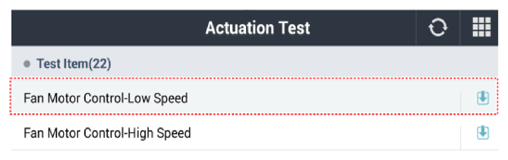

Start the "Fan motor low speed" of the actuation function.

G14936833

Courtesy of KIA MOTORS AMERICA, INC.

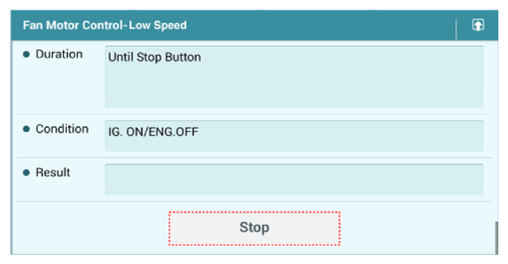

Actuate by pressing the start button.

G14936834

Courtesy of KIA MOTORS AMERICA, INC.

(3) Visually check the operation of the cooling fan.

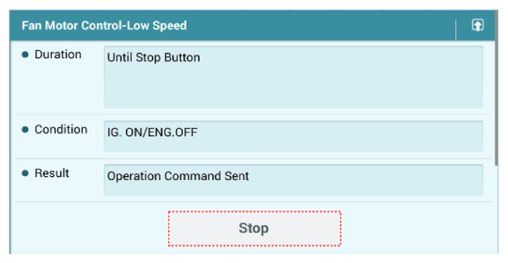

(4) Stop the actuation by pressing the stop button.

G14936835

Courtesy of KIA MOTORS AMERICA, INC.

[Fan motor high speed]

Start the "Fan motor high speed" of the force drive function.

G14936836

Courtesy of KIA MOTORS AMERICA, INC.

Perform actuation by pressing the start button.

G14936837

Courtesy of KIA MOTORS AMERICA, INC.

(3) Visually check the operation of the cooling fan.

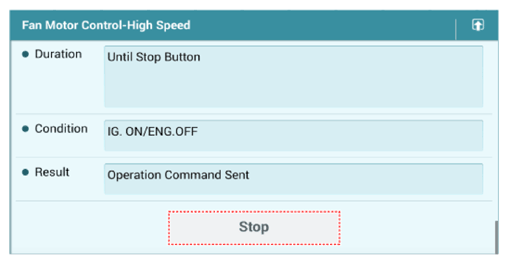

(4) Stop the actuation by pressing the stop button.

G14936838

Courtesy of KIA MOTORS AMERICA, INC.
