Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Remove the air duct and air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

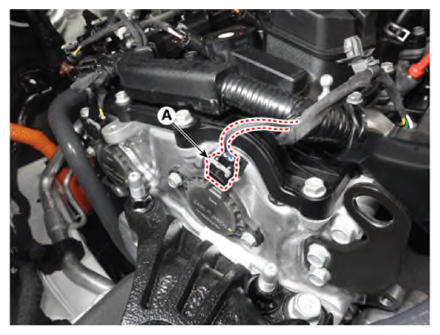

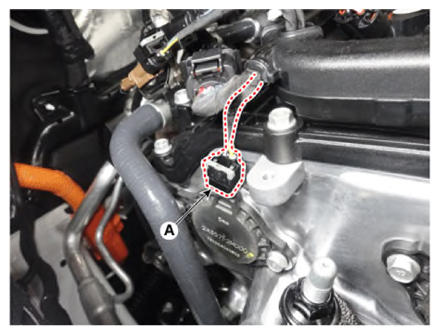

- Disconnect the Variable Force Solenoid (VFS) connector (A).
Intake
Exhaust

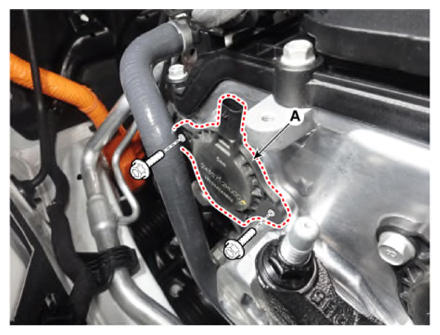

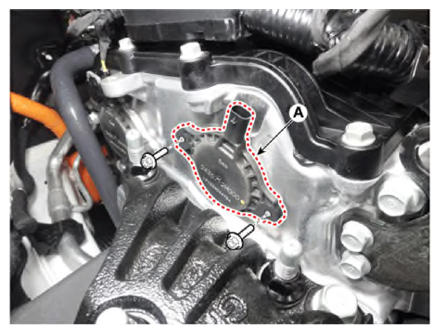

- Remove the VFS (A) after removing the mounting bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
Intake
Exhaust
