Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

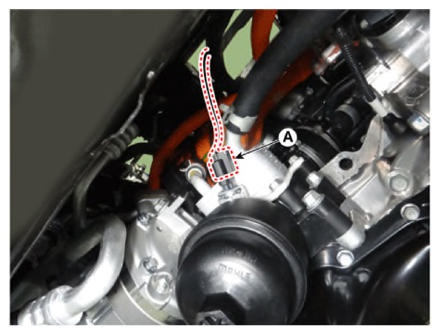

Disconnect the Oil Pressure And Temperature Sensor (OPTS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

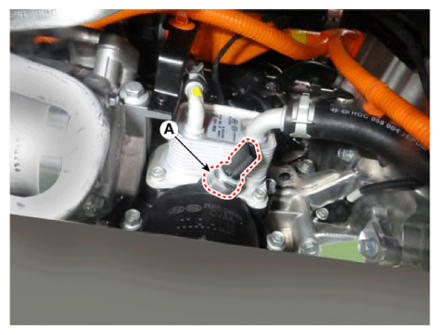

Remove the OPTS (A).
Tightening torque:

34.3 - 38.2 N.m (3.5 - 3.9 kgf.m, 25.3 - 28.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
