Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

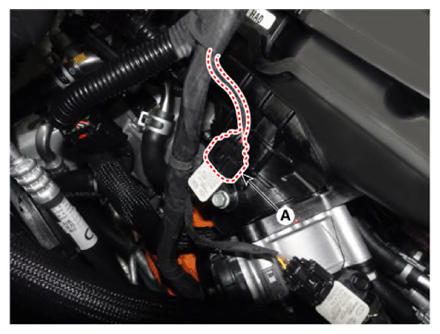

  2. Disconnect the Manifold Absolute Pressure Sensor And Intake Air Temperature Sensor (MAPS And IATS) connector (A).
    G14957042Courtesy of KIA MOTORS AMERICA, INC.

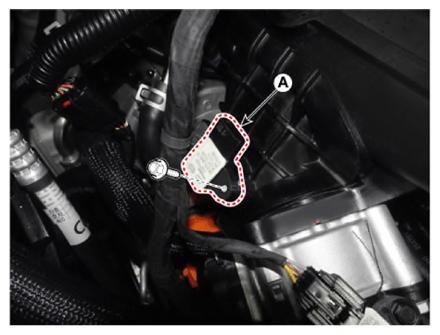

  3. Remove the MAPS And IATS (A) after removing the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14957043Courtesy of KIA MOTORS AMERICA, INC.
