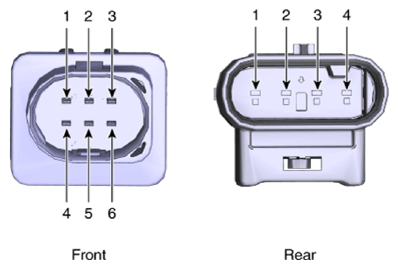

Connector And Terminal Function
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Pin |
Function |
| Front |
Rear |
| 1 |
NERNST voltage |
Sensor signal + |
| 2 |
Heater + |
Sensor ground - |
| 3 |
Virtual ground |
Heater + |
| 4 |
Resistance |
Heater - |
| 5 |
Heater - |
|
| 6 |
Pumping current |
