Connector And Terminal Function

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

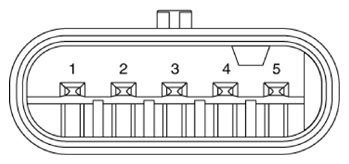

G14956995Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Sensor power (5 V)
2 Sensor ground
3 Sensor signal
4 DC motor (+)
5 DC motor (-)
