Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Install the CKPS to the specified torque.
- If CKPS is dropped, it may cause internal damage. Do not use it.

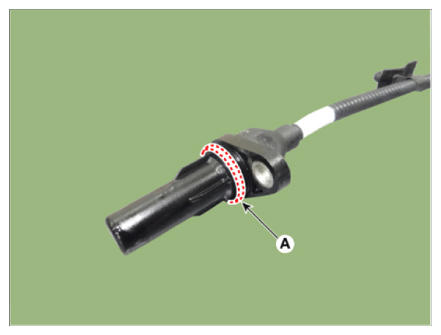

- Apply the engine oil to the O-ring (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
