Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the high pressure fuel pipe.
(Refer to Fuel Delivery System - "FUEL LINE ")

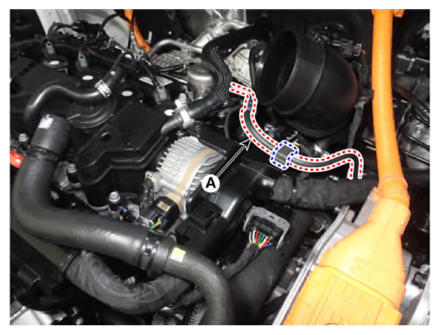

Separate the fuel feed hose (A) by removing the fixing clip.

Courtesy of KIA MOTORS AMERICA, INC.

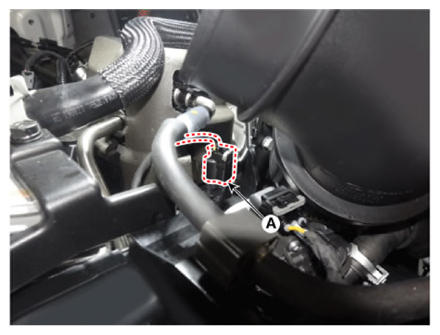

Remove the ground line (A) by removing the bolt.
Tightening torque:

7.9 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

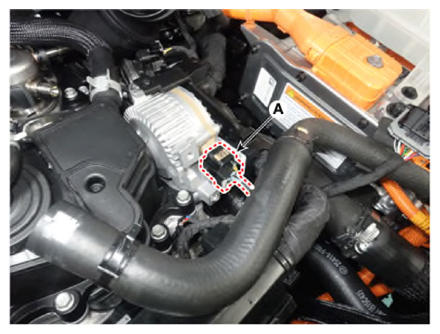

Disconnect the Continuous Variable Valve Duration (CVVD) actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

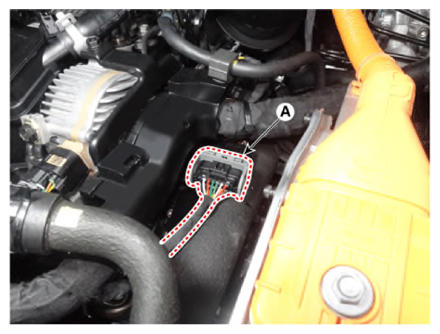

Disconnect extension wiring connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

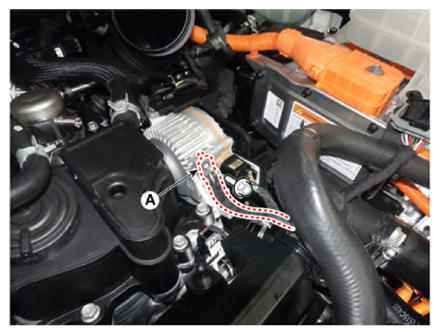

Disconnect the camshaft position sensor (exhaust) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

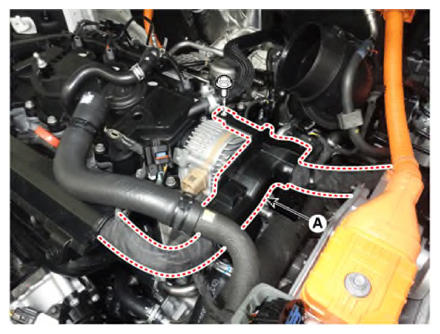

Remove the wiring protector (A) by removing the bolt.

Courtesy of KIA MOTORS AMERICA, INC.

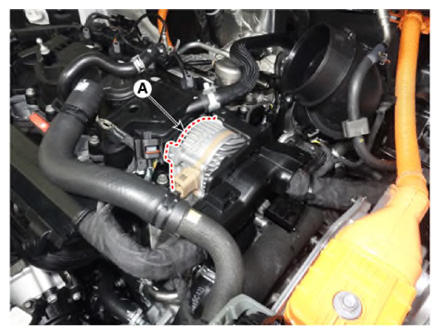

Remove the CVVD actuator (A) by removing the bolts.
Tightening torque:

19.0-24.5 N.m (1.9-2.5 kgf.m, 13.8-18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
