Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.NOTE:
- When installing the CVVD actuator, insert dowel pin (B) certainly into the cam carrier hole after inserting the shaft (A).

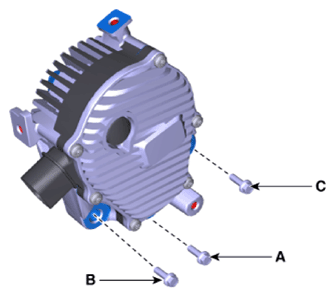

- Tighten the bolts in the following order.
- Lightly tighten the bolt (A).
- Tighten the bolt (B) to the specified torque.
- Tighten the bolt (C) to the specified torque.
- Tighten the bolt (A) to the specified torque.
- When installing the CVVD actuator, insert dowel pin (B) certainly into the cam carrier hole after inserting the shaft (A).
- Perform the

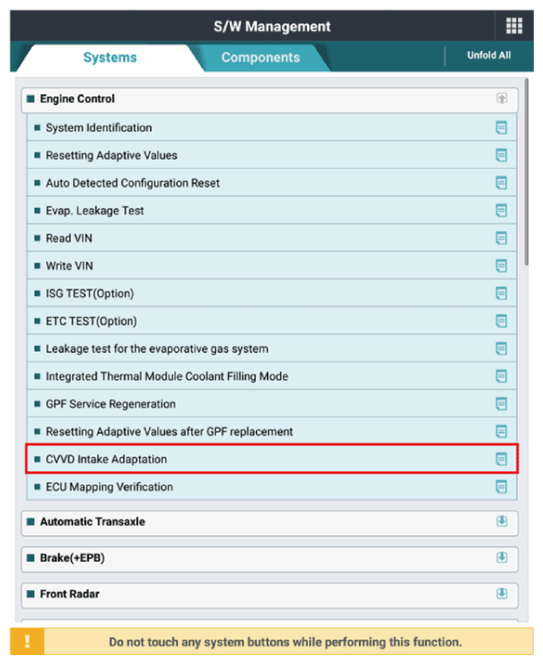

"CVVD Intake Adaptation" after replacing the CVVD actuator.
