Hybrid Power Control Unit (HPCU) Tray

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the HPCU.
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")

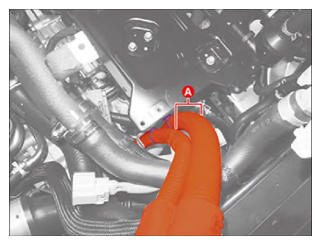

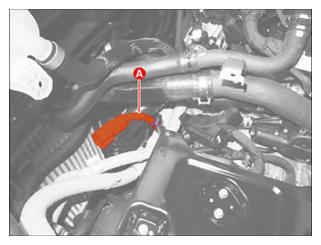

Remove the wiring fixing clips (A) from the HPCU tray.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

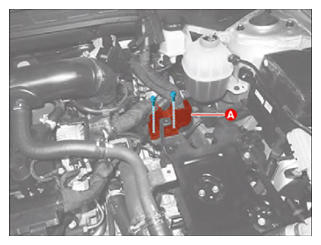

Remove the wiring protector (A) after removing the bolts.
Tightening torque:

8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

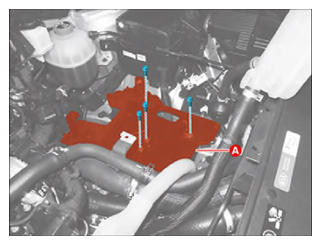

Remove the HPCU tray (A) after removing the bolts.
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
