Schematic Diagrams
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

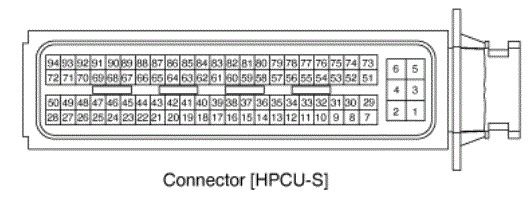

| Pin | Description | Connected to |
|---|---|---|
| 1 | HCU Ground | Chassis Ground |
| 2 | HCU Ground | Chassis Ground |
| 3 | HCU Ground | Chassis Ground |
| 4 | Battery Power (B+) | Battery |
| 5 | Battery Power (B+) | Battery |
| 6 | Battery Power (B+) | Battery |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | HEV Relay Status | Integrated Body Control Unit (IBU) |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | Brake Switch 2 Signal Input | Brake Switch (NC, IG1) |
| 26 | Brake Switch 1 Signal Input | Brake Switch (NO, B+) |
| 27 | - | - |
| 28 | - | - |
| 29 | Clutch Pressure Sensor PWM Signal Input | Clutch Pressure Sensor |
| 30 | Sensor Ground | Clutch Pressure Sensor |
| 31 | Clutch Pressure Sensor Signal Input | Clutch Pressure Sensor |
| 32 | Sensor Ground | HSG Temperature Sensor |
| 33 | HSG Temperature Sensor Signal Input | HSG Temperature Sensor |
| 34 | Sensor Shield | HSG Temperature Sensor |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | Sensor Ground | Motor Temperature Sensor |
| 39 | Motor Temperature Sensor Signal Input | Motor Temperature Sensor |
| 40 | Sensor Shield | Motor Temperature Sensor |
| 41 | - | - |
| 42 | - | - |
| 43 | - | - |
| 44 | - | - |
| 45 | - | - |
| 46 | - | - |
| 47 | - | - |
| 48 | - | - |
| 49 | - | - |
| 50 | Start Signal Input | Integrated Body Control Unit (IBU) |
| 51 | - | - |
| 52 | HSG Resolver (SNSR 1) | HSG Resolver |
| 53 | HSG Resolver (SNSR 3) | HSG Resolver |
| 54 | HSG Resolver (SNSR 2) | HSG Resolver |
| 55 | HSG Resolver (SNSR 4) | HSG Resolver |
| 56 | Shield | HSG Resolver |
| 57 | - | - |
| 58 | Motor Resolver (SNSR 1) | Motor Resolver |
| 59 | Motor Resolver (SNSR 3) | Motor Resolver |
| 60 | Motor Resolver (SNSR 2) | Motor Resolver |
| 61 | Motor Resolver (SNSR 4) | Motor Resolver |
| 62 | Shield | Motor Resolver |
| 63 | - | - |
| 64 | - | - |
| 65 | - | - |
| 66 | - | - |
| 67 | Water Pump (LIN) | Electric Water Pump |
| 68 | - | - |
| 69 | - | - |
| 70 | - | - |
| 71 | - | - |
| 72 | - | - |
| 73 | IGN Signal Input | Smart Key Unit |
| 74 | - | - |
| 75 | - | - |
| 76 | - | - |
| 77 | HSG Resolver (+) | HSG Resolver |
| 78 | HSG Resolver (-) | HSG Resolver |
| 79 | - | - |
| 80 | - | - |
| 81 | - | - |
| 82 | - | - |
| 83 | Motor Resolver (+) | Motor Resolver |
| 84 | Motor Resolver (-) | Motor Resolver |
| 85 | - | - |
| 86 | - | - |
| 87 | - | - |
| 88 | - | - |
| 89 | - | - |
| 90 | Powertrain CAN [High] Signal Input | Other Control Modules |
| 91 | Powertrain CAN [Low] Signal Input | Other Control Modules |
| 92 | - | - |
| 93 | Hybrid CAN [High] signal input | Other control modules |
| 94 | Hybrid CAN [Low] signal input | Other control modules |
