Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Remove the under cover.
(Reter to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

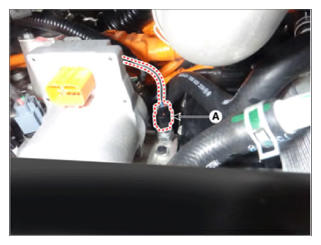

- Disconnect the Clutch Pressure Sensor (CPS) connector (A).

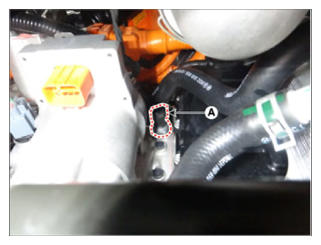

- Remove the CPS (A).
Tightening torque:
10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb.ft)
