Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
    NOTE: Install the sensor after applying the oil to O-ring (A).
    G14959406Courtesy of KIA MOTORS AMERICA, INC.
  2. Perform the engine clutch fluid pressure calibration using the KDS.
    NOTE: HCU need to be learnt the kissing point at both ends of the clutch to reduce shock while engine power is connected to the transaxle. So perform the Clutch Pressure Sensor (CPS) Calibration after installing the CPS, HCU, engine or hybrid drive motor.

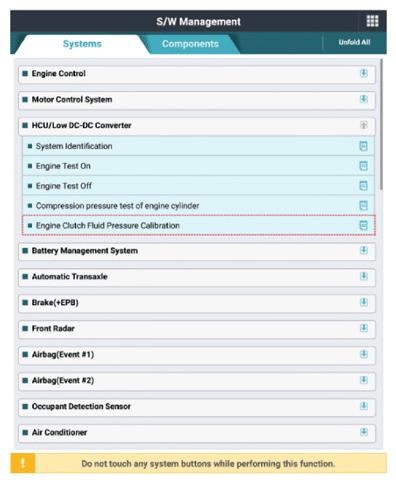

    G14959407Courtesy of KIA MOTORS AMERICA, INC.

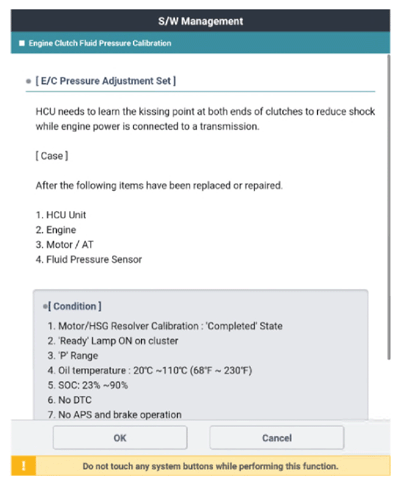

    G14959408Courtesy of KIA MOTORS AMERICA, INC.
