Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

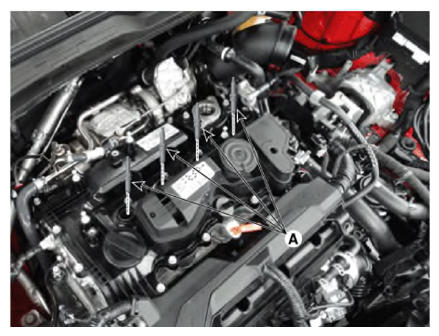

- Remove the spark plug (A) by using a spark plug wrench.
Tightening torque:
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 Ib.ft)
NOTE:
Be careful that no contaminates enter into spark plug holes.
