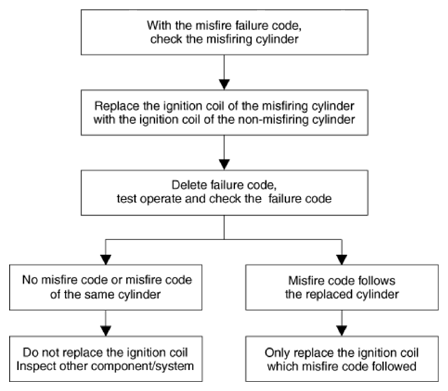

Test For Changing Position Of Each Ignition Coil
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

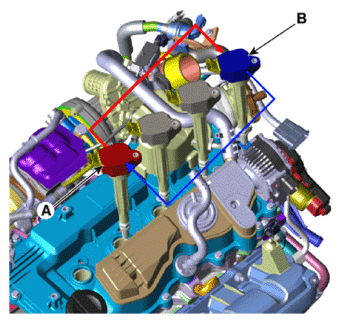

- Ignition coil with misfire code
- Ignition coil without misfire code
NOTE:
Do not move with spark plug at the same time (move the ignition coil only)
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
