Connector Assembly Status Test

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
(Refer to Charging System - "AUXILIARY 12V BATTERY ")
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

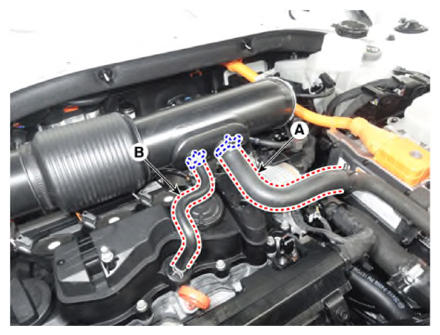

Disconnect the RCV hose (A) and breather hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

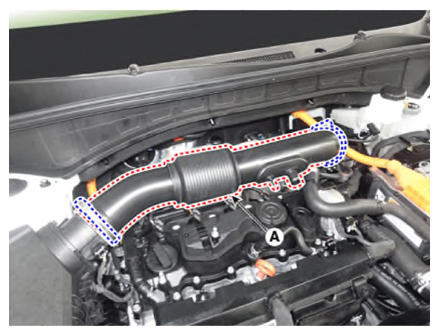

Remove the intake hose (A) after releasing the clamps.
Tightening torque :

4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.7 - 5.0 lb.ft, 43.4 - 60.7 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

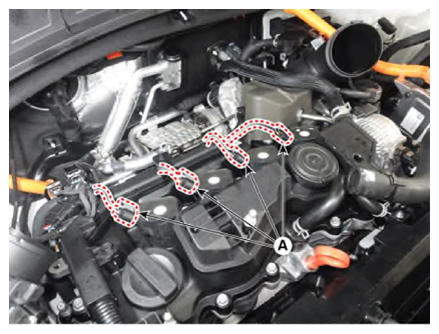

Remove the connector (A) and reinstall it.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
