Run-out Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Jack up the vehicle.

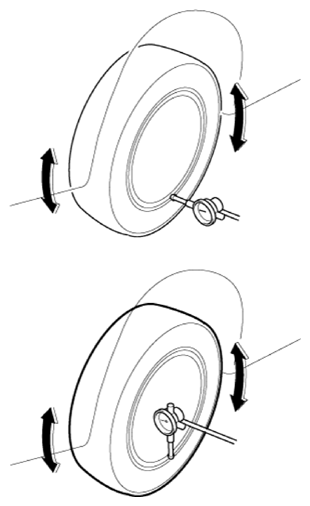

- Measure the wheel run-out by using a dial indicator as illustration below.
| Run-out |
Aluminum |
| Radial mm (in.) |
Below 0.3 (0.0118) |
- If measured value exceeds the standard value, replace the wheel.
 Courtesy of KIA MOTORS AMERICA, INC.
|
