Transaxle Mounting Bracket

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Shut off the high voltage circuit.

    (Refer to General Information - "HIGH VOLTAGE SHUT - OFF PROCEDURES ")

  3. Remove the engine cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

  4. Remove the engine control module (ECM).

    (Refer to Engine/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

  5. Remove the hybrid power control unit

    (Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT ")

  6. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  7. Install jack under the transaxle to support.
    NOTE: Put the rubber block between the jack and transaxle to avoid damaging the transaxle.
  8. Remove the LH front wheel guard.

    (Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")

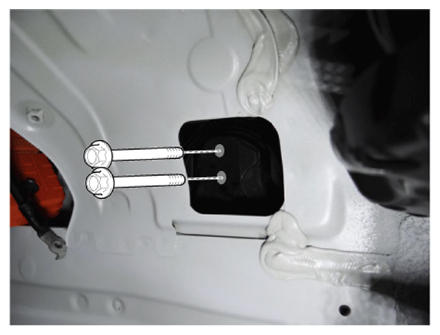

  9. Remove the transaxle support bracket mounting bolts (A).

    Tightening torque:

    107.8 - 127.4 N.m (11.0 - 13.0 kgf.m, 79.5 - 94.0 lb.ft)

    G14937101Courtesy of KIA MOTORS AMERICA, INC.

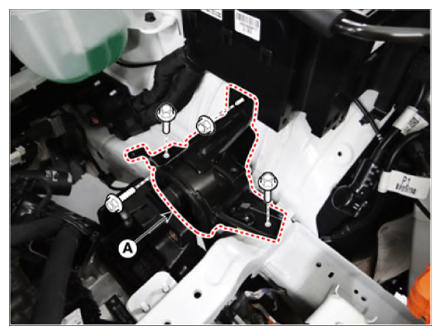

  10. Remove the transaxle mounting bracket (A).

    Tightening torque  :

    63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

    G14937102Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal
