Roll Rod Mounting Bracket

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

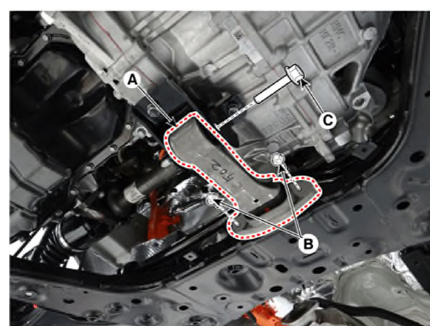

Remove the roll rod bracket (A).
Tightening torque

Bolt (B):

49 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Bolt (C):

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

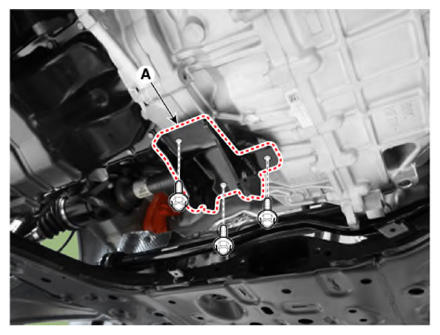

Remove the roll rod mounting support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
