Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

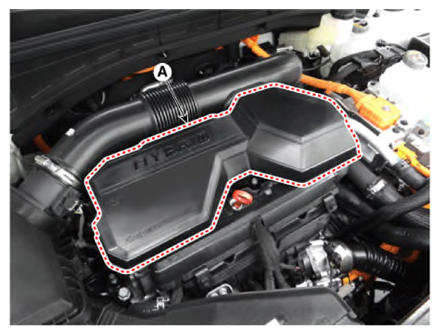

  1. Remove the engine cover (A).
    G14937094Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Remove the engine cover on room temperature.
    • Do not disengage both front and rear mounting point at the same time.
  2. Install in the reverse order of removal.
