Repair Procedures: Removal
- Use fender cover to avoid damaging painted suffices.
- To avoid damage, disconnect the wiring connectors carefully while holding the connector portion.
- Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Shut off the high voltage circuit.
(Refer to General Information - "HIGH VOLTAGE SHUT-OFF PROCEDURES ")
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - AIR CLEANER ")
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine coolant.
(Refer to cooling System - "COOLANT ")
- Drain the inverter coolant
(Refer to Hybrid Motor System - "COOLANT ")
- Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation and Air Conditioning - "ELECTRIC A/C COMPRESSOR ")
- Remove the RCV hose and pipe (A).
- Remove the hybrid power control unit (HPCU).
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")

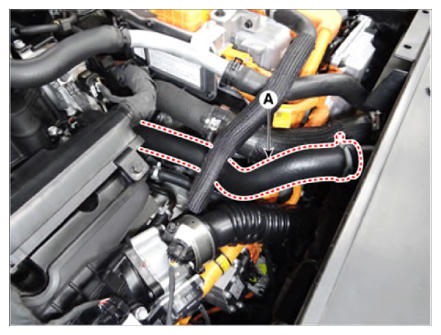

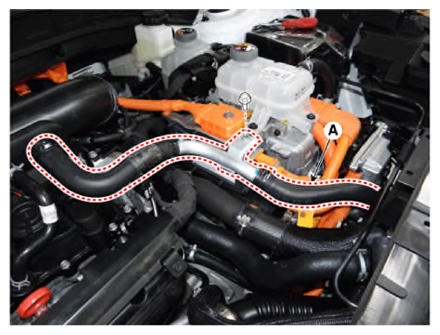

- Disconnect the radiator upper hose (A).

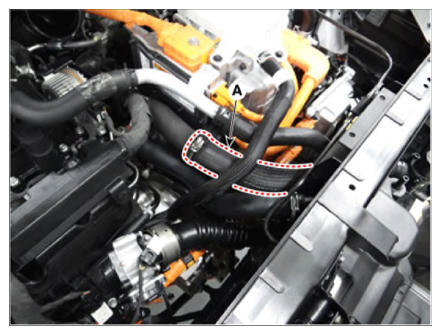

- Disconnect the intercooler inlet hose (A).
Tightening torque :
4.5 - 6.7 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb.ft, 43.4 - 60.6 lb.in)

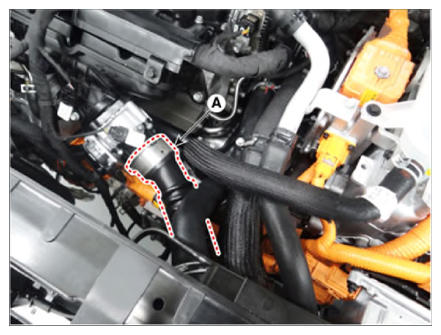

- Disconnect the intercooler outlet pipe (A).

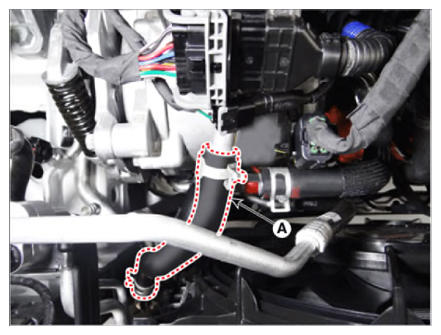

- Disconnect the radiator lower hose (A).

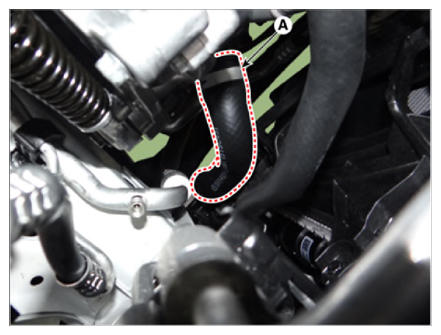

- Disconnect the inverter radiator inlet hose (A).
- Disconnect the engine wiring.

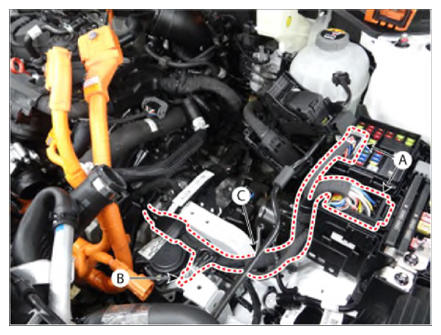

- Disconnect the fuse box connectors (A).
- Disconnect the ground cable (B).
- Disconnect the main wiring (C).

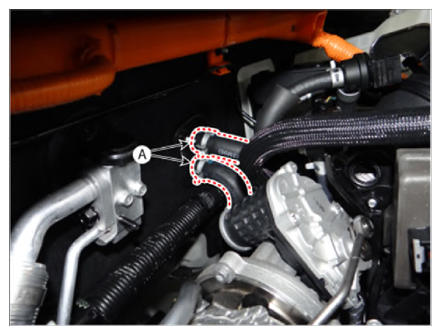

- Disconnect the heater hose (A).

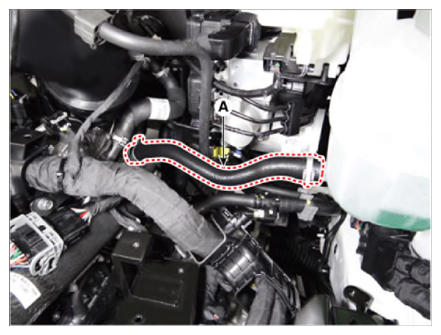

- Disconnect the reservoir tank hose (A).
- Remove the front muffler.
(Refer to Intake And Exhaust System - "MUFFLER ")
- Separator propeller shaft from the automatic transmission.
(Refer to Driveshaft And Axle - "PROPELLER SHAFT ")
- Separator the universal joint from the shaft joint.
(Refer to Suspension System - "Sub Frame REMOVAL ")

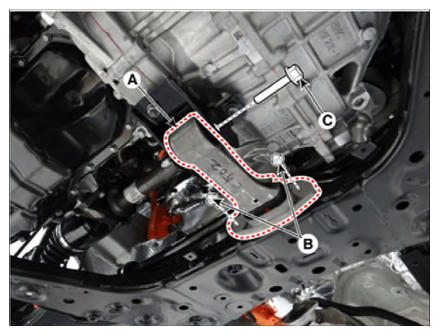

- Remove the roll rod bracket (A).
Tightening torque:
Bolt (B):
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
Bolt (C):
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)
- Remove the roll rod mounting support bracket (A).
Tightening torque:
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)
- Remove the sub frame.
(Refer to Suspension System- "Sub Frame REMOVAL ")
- Support the engine and transaxle assembly with a floor jack.

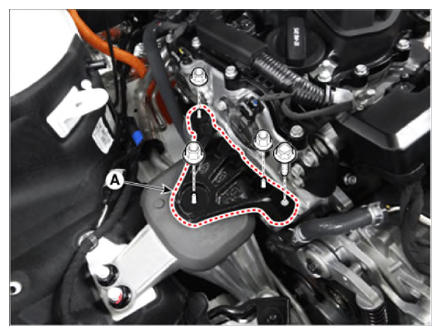

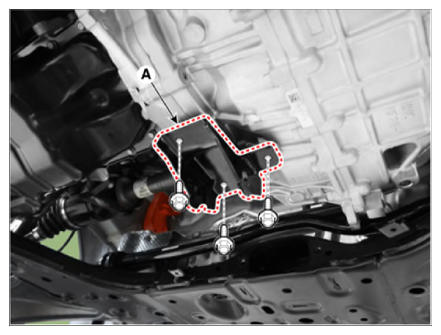

- Remove the engine mounting support bracket (A).
Tightening torque:
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)
- Remove the LH front wheel guard
(Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")

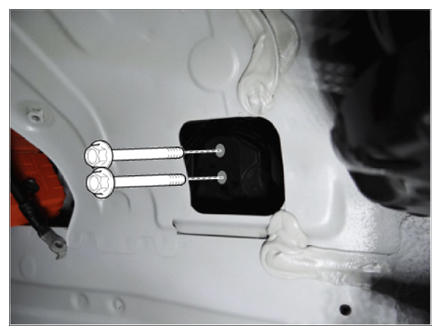

- Remove the transaxle support bracket mounting bolts
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

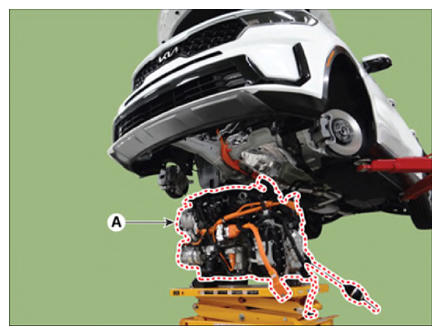

- Remove the engine and transaxle assembly by lifting vehicle (A).
- Before removing the engine and transaxle assembly, make sure hose and wire connectors are disconnected
- When removing the engine and transaxle assembly, by careful not to damage any surrounding par or body components
