Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the coolant from the hybrid cooling system.
(Refer to Hybrid Motor Cooling System - "COOLANT ")

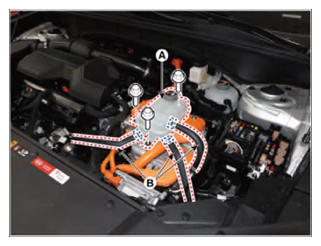

- Separate the hose (B), and remove the reservoir (A) by removing the bolts.
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
