Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery (-) terminal.
Drain the coolant from the hybrid cooling system.
(Refer to Hybrid Motor Cooling System - "COOLANT ")
Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

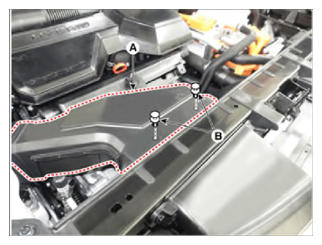

Remove the air cleaner duct (A) after separating the fastener.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner shield guard (A) after removing the bolts.

Courtesy of KIA MOTORS AMERICA, INC.

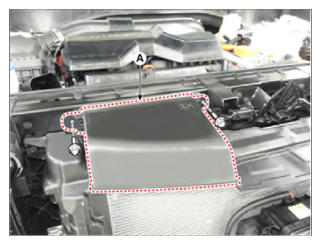

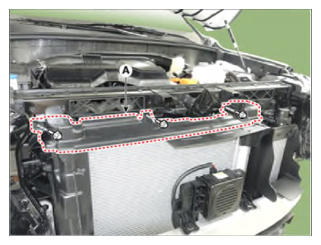

Remove the radiator upper air guard (A) after removing the bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

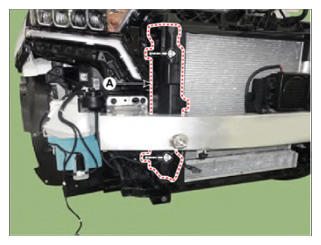

Unscrew the screw and separate the left air guard (A) on the front radiator.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.lt, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

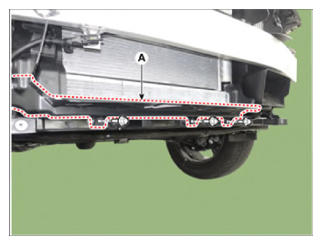

Remove the radiator lower air guard (A) after removing the bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

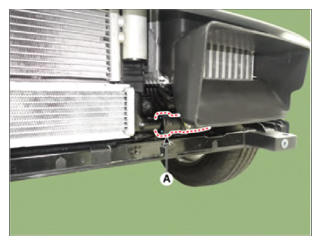

Remove the ambient temperature sensor (A).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

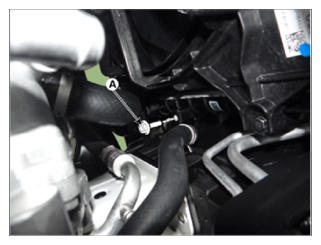

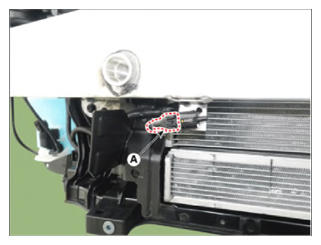

Remove the radiator upper hose mounting bolt (A).
Tightening torque:

4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

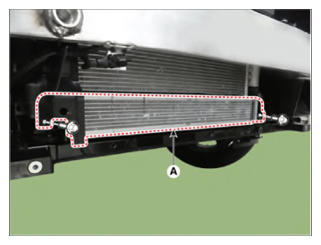

Remove the radiator (A) from radiator assembly removing the bolts.
Tightening torque:

4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Separate the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
