Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery (-) terminal.
Drain the coolant from the hybrid cooling system.
(Refer to Hybrid Motor Cooling System - "COOLANT ")
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

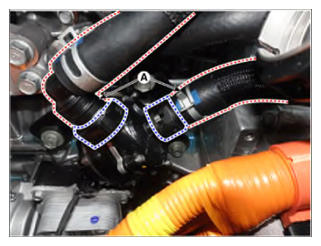

Separate the coolant hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

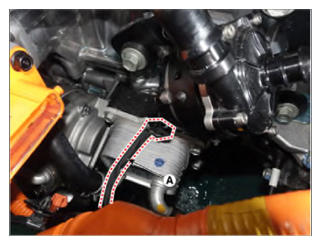

Disconnect the Electric Water Pump (EWP) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

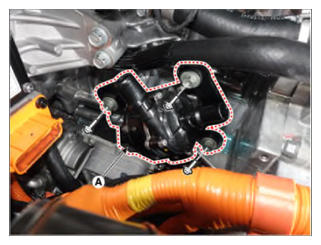

Remove the EWP (A) by removing the bolts.
Tightening torque:

17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
