Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

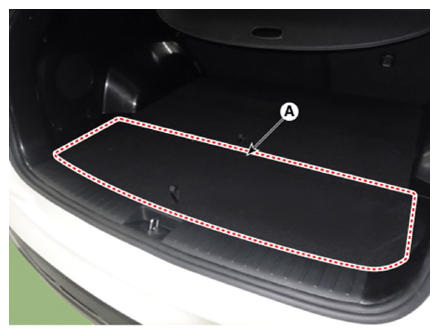

Open the luggage mat (A).

Courtesy of KIA MOTORS AMERICA, INC.

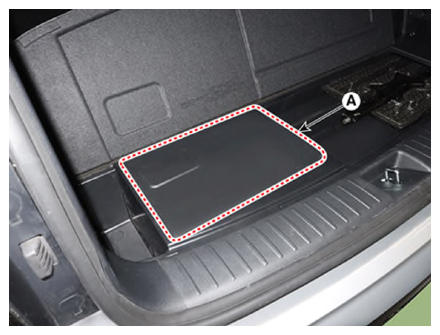

Remove the auxiliary battery service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

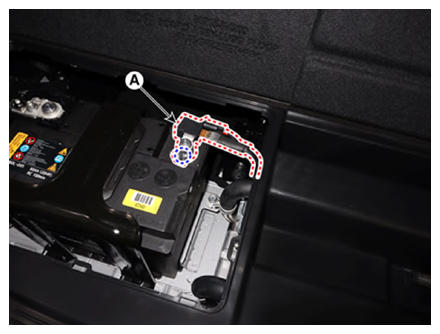

Disconnect the auxiliary 12V negative (-) battery terminal (A) after loosening the nut.
Tightening torque :

7.9 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

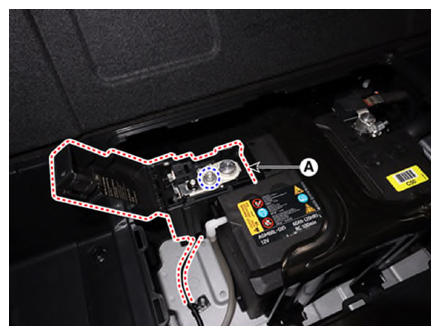

Disconnect the auxiliary 12V negative (+) battery terminal (A) after loosening the nut.
Tightening torque :

7.9 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

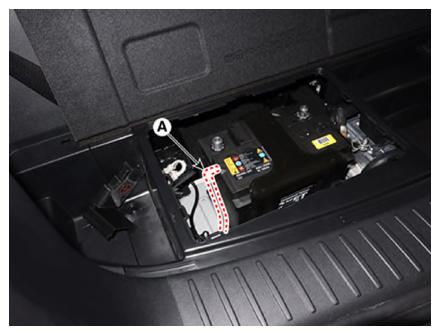

Separate the battery exhaust hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

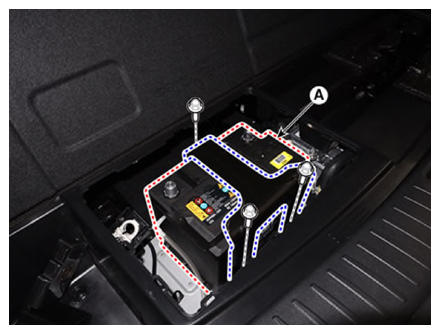

Remove the auxiliary battery (A) after removing the auxiliary battery bracket by removing the mounting bolts.
Tightening torque :

8.9 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
