Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

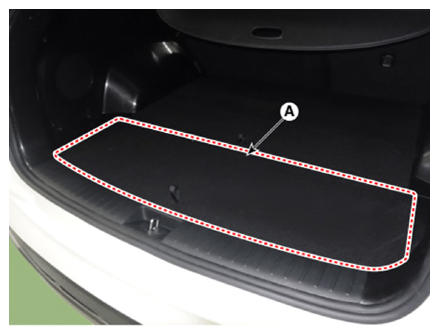

Open the luggage mat (A).

Courtesy of KIA MOTORS AMERICA, INC.

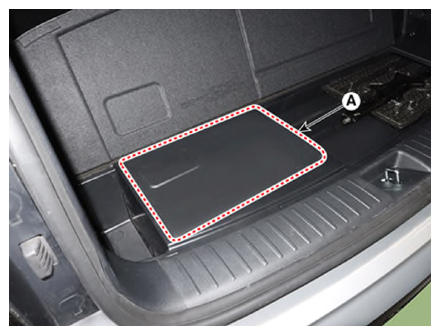

Remove the auxiliary batter service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

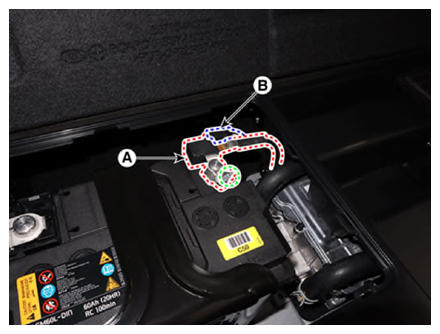

Disconnect the auxiliary 12V negative (-) battery terminal (A) by loosening the mounting nut after disconnecting the battery connector (B).
Tightening torque :

7.9 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

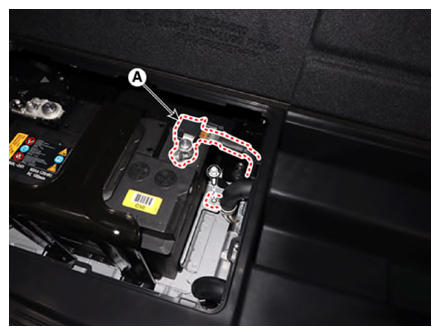

Remove the auxiliary battery current sensor (A) after removing the mounting bolt.
Tightening torque :

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 16.0 - 23.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
