Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

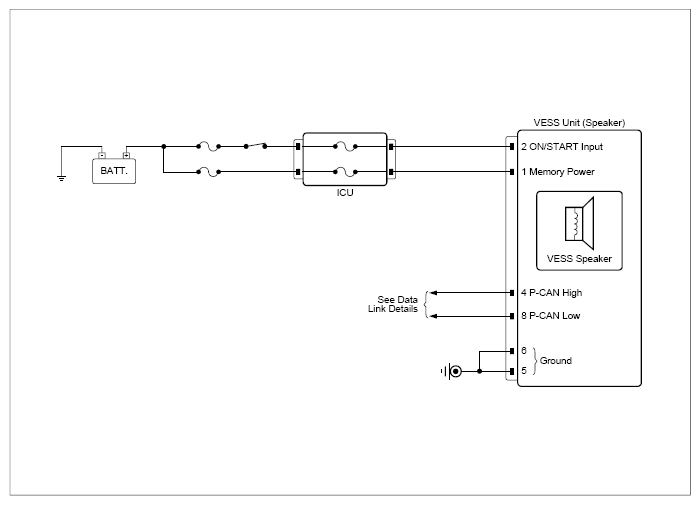

G14937518Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 VESS connector 2 (ON/START Input) Chassis ground - B+
VESS connector 1 (Memory power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect the cable from auxiliary battery (+) connector in the engine room.
  3. Disconnect the electrical connector(s) from the concerned component.
 VESS connector 5 (ground) Chassis ground - Approx. below 1Ω
VESS connector 6 (ground) Chassis ground - Approx. below 1Ω

Good

No Good
