Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
IEB connector | 4 (C-CAN high) | Chassis ground | - | Fig.1 |
| IEB connector | 5 (C-CAN low) | Chassis ground | - | ||
|
IBU connector | 35 (P-CAN high) | Chassis ground | - | Fig.2 |
| IBU connector | 36 (P-CAN low) | Chassis ground | - | ||
|
IEB connector | 1, 6 (power) | Chassis ground | - | B+ |
| IEB connector | 1, 2 (B+) | Chassis ground | - | B+ | |
| IEB connector | 14, 46 (ground) | Chassis ground | - | Approx. 0V | |
|
IEB connector | 14, 46 (ground) | Chassis ground | - | Approx. below 1Ω |
|
ICU connector | 20 (C-CAN high) | IEB connector | 4 (C-CAN high) | Approx. below 1Ω |
| ICU connector | 19 (C-CAN low) | IEB connector | 5 (C-CAN low) | Approx. below 1Ω | |
| ICU connector | 20 (C-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| ICU connector | 19 (C-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |

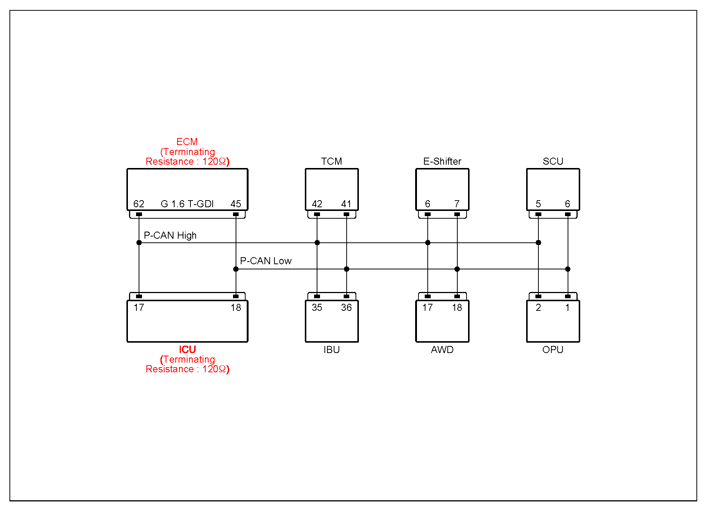

| ICU connector | 17 (P-CAN high) | IBU connector | 35 (P-CAN high) | Approx. below 1Ω | |
| ICU connector | 18 (P-CAN low) | IBU connector | 36 (P-CAN low) | Approx. below 1Ω | |
| ICU connector | 17 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| ICU connector | 18 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
|
IEB connector | 4 (C-CAN high) | IEB connector | 5 (C-CAN low) | Approx. 60Ω |
| IBU connector | 35 (P-CAN high) | IBU connector | 36 (P-CAN low) | Approx. 60Ω | |
| ICU (component side) | 17 (P-CAN high) | ICU (component side) | 18 (P-CAN low) | Approx. 120Ω | |
Good
- Fault is intermittent caused by poor contact in TPMS's connector or was repaired and IBU memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, Go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- Repair as necessary and then Go to "Verification Of Repair " procedure.
- If no problems were found with the circuits or connectors, replace HECU and then Go to "Verification Of Repair " procedure.
