Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

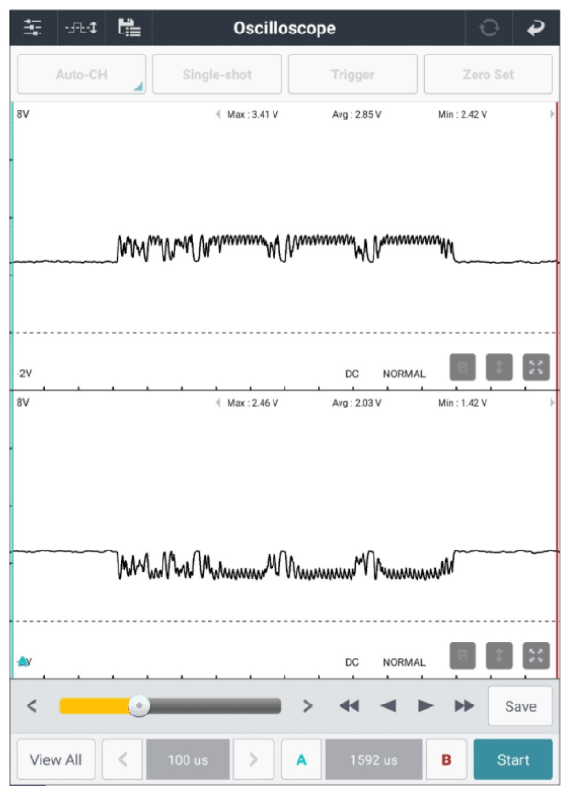

SVMS ECU connector | 10 (B-CAN high) | Chassis ground | - | Fig.1 |
| SVMS ECU connector | 24 (B-CAN low) | Chassis ground | - | ||
|

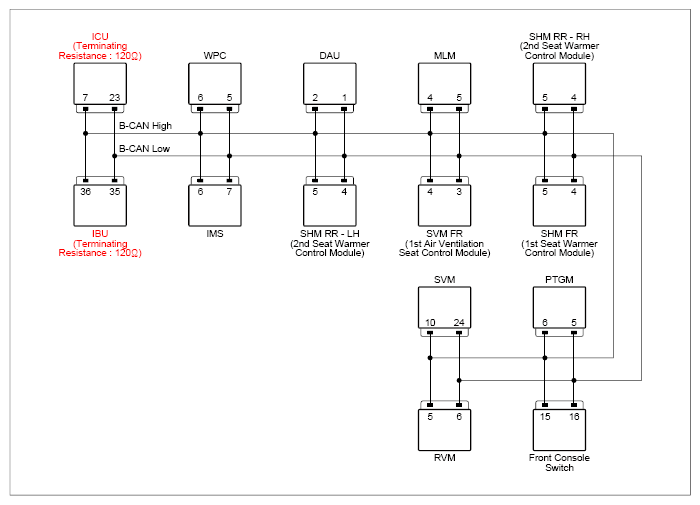

SVMS ECU connector | 10 (B-CAN high) | ICU connector | 7 (B-CAN high) | Approx. below 1Ω |
| SVMS ECU connector | 24 (B-CAN low) | ICU connector | 23 (B-CAN low) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
