Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

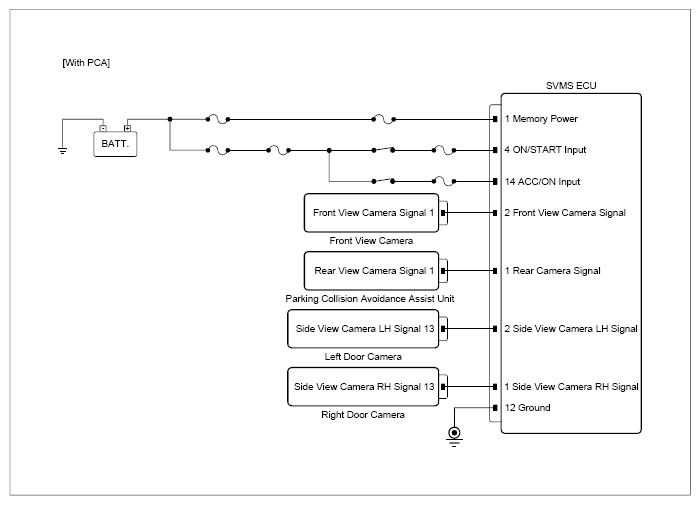

Parking collision avoidance assist unit connector (with PCA) | 1 (rear view camera signal) | Chassis ground | - | Approx. 6.5V |

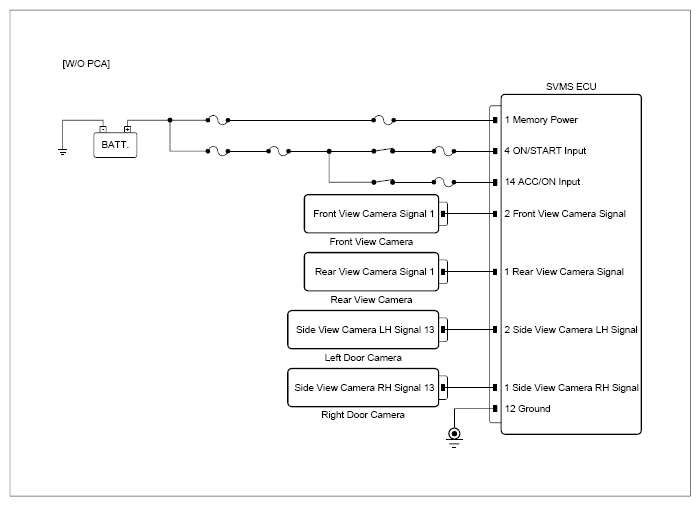

| Rear view camera connector (W/O PCA) | 1 (rear view camera signal) | Chassis ground | - | Approx. 6.5V | |
|
Parking collision avoidance assist unit connector (with PCA) | 1 (rear view camera signal) | SVMS ECU connector | 1 (rear view camera signal) | Approx. below 1Ω |
| Rear view camera connector (W/O PCA) | 1 (rear view camera signal) | SVMS ECU connector | 1 (rear view camera signal) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- If no problems were found with the circuits or connectors, replace ultra optical camera that causes the problem and then Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
